Sweaton swimming pool shutters.
Swimming pool shutters. The latching and catching ironmongery, all operated from the outside, has to hold the shutters open and closed; in some instances the open shutters to one window abut the open shutter of the adjacent window, which produced the design of the circular catch in the last two images. Hot zinc spray finish.
-
- pool building south elevation
-

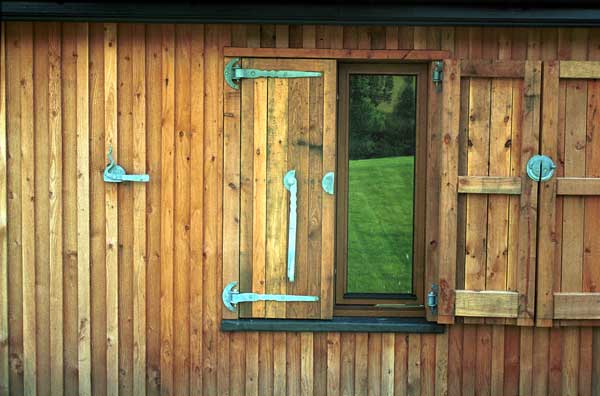

- shutter furniture
-
- holdback
-

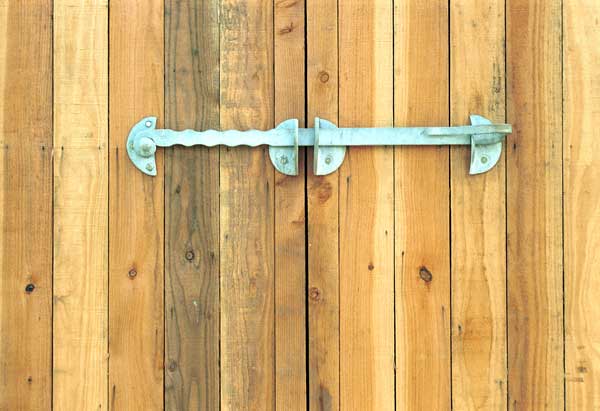

- shutter bar
-
- shytter held
-

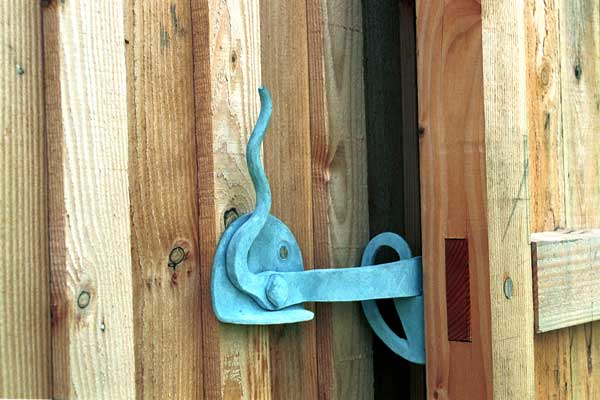

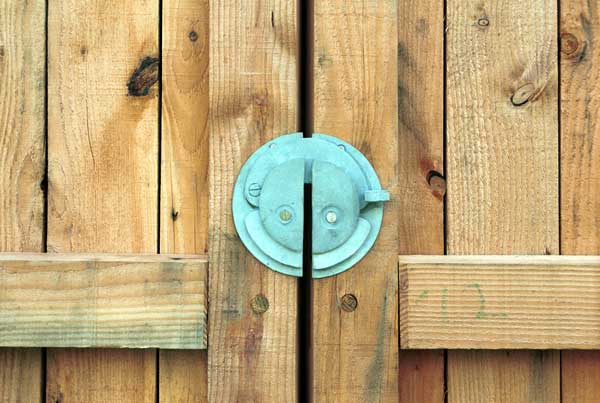

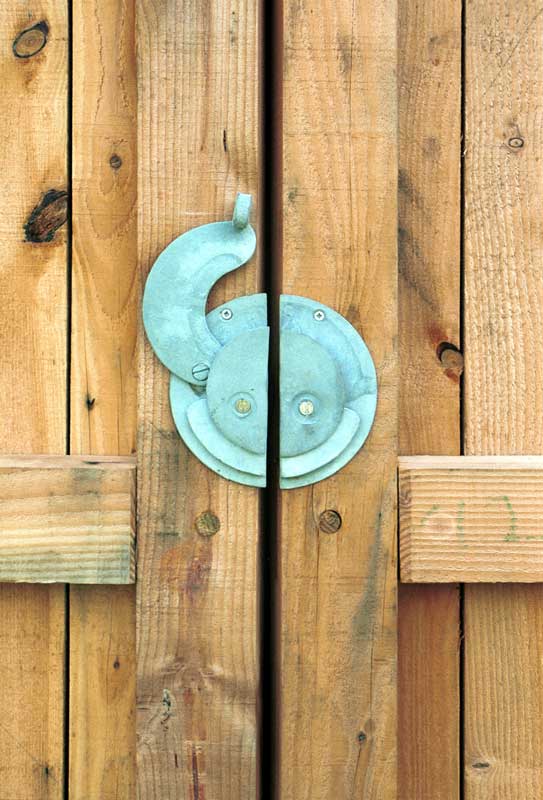

- shutter latch closed
-

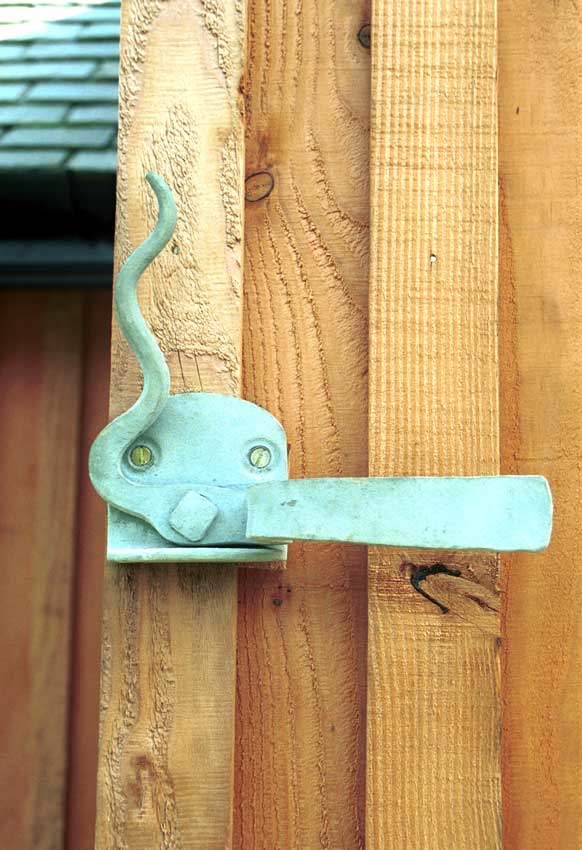

- latch opening
Sweaton outbuilding shutters
The first three images detail one of several sets of external shutters opened and closed from the ground outside the building. The second illustration is of one of a series of external shutters operated from inside the building.
-

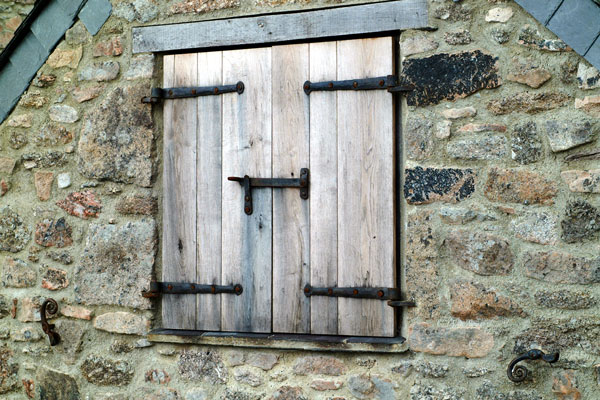

- external shutter furniture closed
-

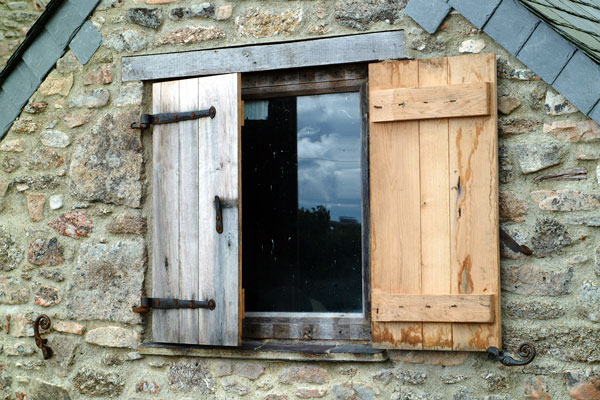

- opening from outside
-

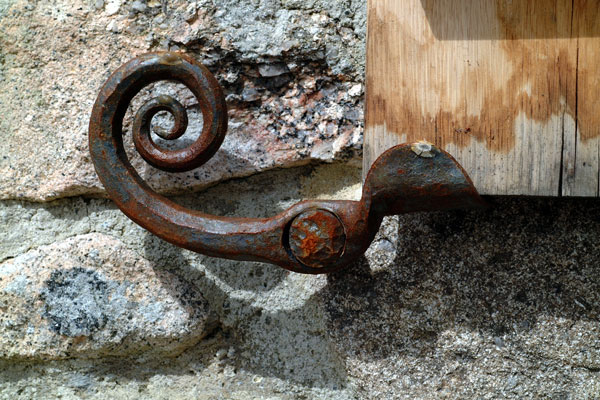

- forged holdback
-

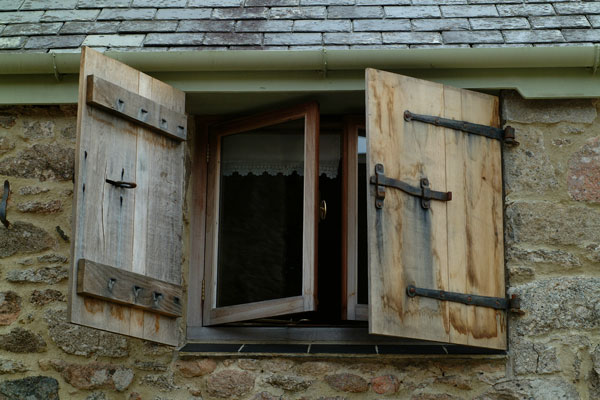

- upstairs shutters
-

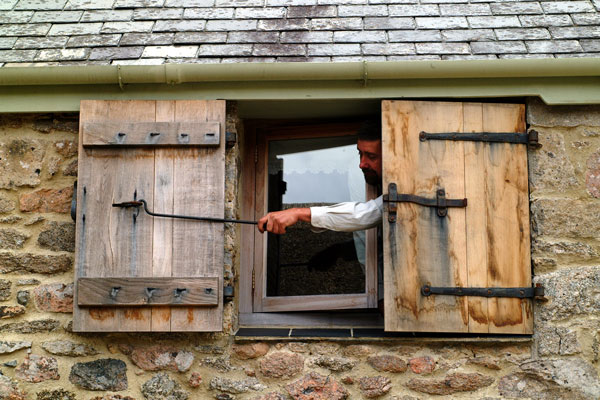

- operating shutters from inside
-

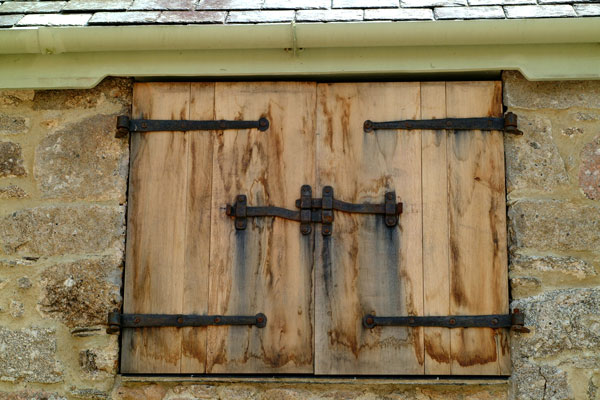

- shutters closed
Sweaton front door.
The new, largely glazed, front door to this old house posed problems of space for the ring latch set, the door stile being very restricted, and really more suited to some form of mortice latch and knob. Also, to site the ring handle so close to the edge of an inward opening door made it necessary to arrange the internals of the latch in such a way that, while operable from both sides, the inside did not operate the outside handle….
The need to site the mounting plate of the tee hinges away from the top and bottom of the jamb (and also to cover up the scarring from the pintles of the previous door) led to the solution of the snakey straps.
-

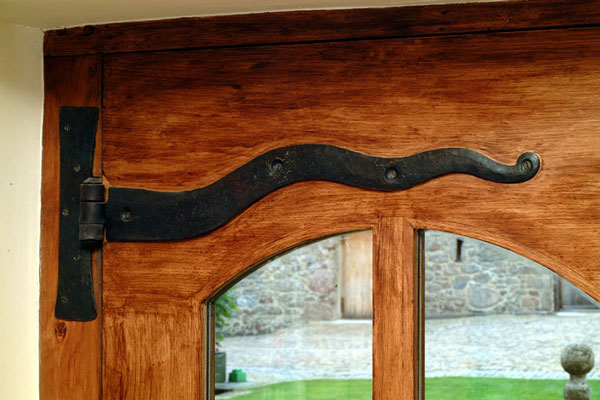

- snakey strap hinge
-

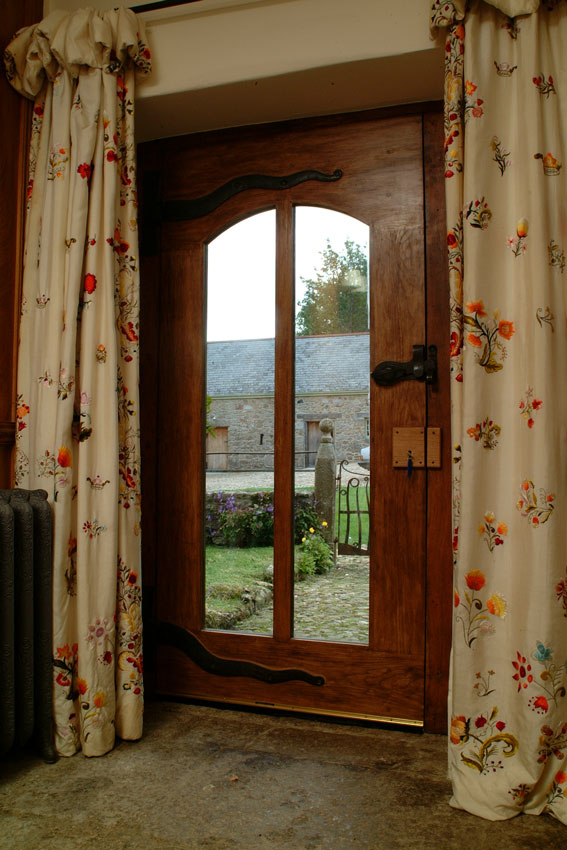

- front door inside
-

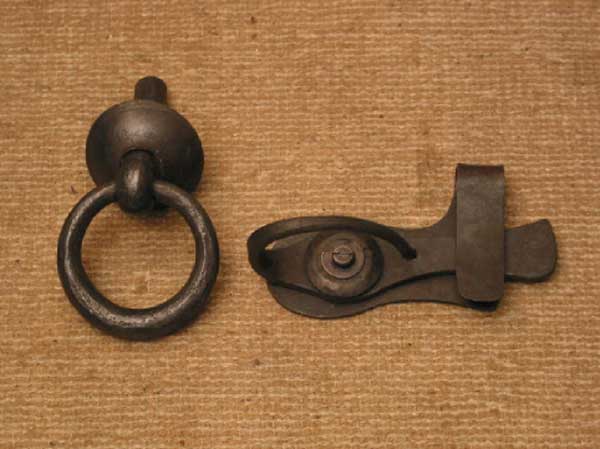

- narrow stile ring latch set
-
Initial idea/concept; customer/ barry marmot/ jcb
-
Design; jcb
-
Detailing jcb
-
Executed; jcb
-
Other contractors; The Timber Frame Co.
